You are here: Home > Products > CUT/LUK SERIES
Inverter Plasma Cutting Machine
(LGK-70/100/120/160) Inverter Plasma Cutting Machine
Model: LGK-70/100/120/160
Functions and Features:
■Cutting capacity increased2 times higher in cutting speed compare with oxy-cutting.
■Suitable Metal sheet can be cut easily and quickly.
■Sutable for cutting stainless steel,copper,iron and aluminium etc.
■Simple operation and smooth cutting surface.
■HF touched arc-starting cutting.

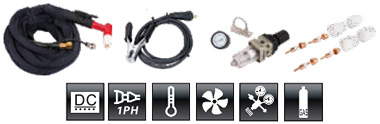

Supplied complete with plasma cutting torch and earth clamp,face mask and welding brush.
Welding Thickness:
Model Max Thickness of Cutting
LGK-70 22mm
LGK-100 30mm
LGK-120 35mm
LGK-160 45mm
Main Technical Parameters
Item Unit LGK-70 LGK-100 LGK-120 LGK-160
Input Power Voltage V 单相220V±10%
Frequency Hz 50/60 50/60 50/60 50/60
Rated Input Current KVA 9.4 15 19 28.8
Max Cutting Current A 70 100 120 160
No-load Voltage V 260 280 280 280
Rated Duty Cycle % 60 60 60 60
Gas Pressure mpa 0.4-0.6 0.5-0.6 0.5-0.6 0.5-0.7
Insulation Class   F F F F
Protective Grade Of Housing   IP21S IP21S IP21S IP21S
Overal Dimension mm 475x215x420 475x215x420 475x215x420 520x600x650
Weight kg 18 23 27.5 38
