Functions and Features:
■Advanced(MOSFET)inverter techology.
■Compact,portable,highly effective and low consumption,energy saving;
■Anti-stick,thermostatic control.fan cooled,carrying strap and handle.
■Hot start,arc force,overload protection.
■HF(high frequency)arc-starting.
■Extremely flexible use for welding materials such as;steel,iron,titanium,copper,nickel and alloys.
Access:

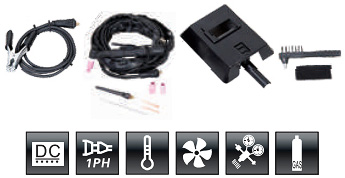

TIG焊枪、焊钳、焊夹、焊接电缆、刷子/渣锤、焊帽 Supplied complete with TIG torch,electrode holder,and earth clamp,face mask and welding brush,carton box.

Welding Thickness：

Model	Welding Thickness
TIG-160	0.5-3.5mm
TIG-180	0.5-5.0mm
TIG-200	0.5-7.0mm

Main Technical Parameters

Item	Unit	TIG-160	TIG-180	TIG-200
Input Power Voltage	V	single-phase 220V±10%
Frequency	Hz	50/60	50/60	50/60
Rated Input Current	KVA	3.3	3.9	4.6
Output Current Adjusting Range	A	10-160	10-180	10-200
No-load Voltage	V	42	42	42
Rated Duty Cycle	%	60	60	60
Arc-start Mode		High Frequency
Speed Of Welding Wire	COSФ	0.93	0.93	0.93
Protective Grade Of Housing		IP21S	IP21S	IP21S
Overal Dimension	mm	370x157x310	370x157x310	370x157x310
Weight	kg	8.5	8.8	9
