You are here: Home > Products > Inverter AC/DC TIG Welding Machine
Inverter AC/DC TIG Welding Machine - -> Total 1 Products
1. Inverter AC/DC TIG Welding Machine (WSME-200/250/315)
Functions and Features:
■Advaced(MOSFET)inverter technology,suit for TIG and MMA welding.
■HF ARC start,gas post flow,AC/DC welding functions,Less spatter.stable welding arc.good welding forming.
■Complete over voltage,over urrent,over heat rotection,
■Small body,light weight.portable.

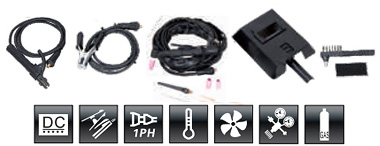

Supplied complete with TIG torch,electrode holder,and earth clamp,face mask and welding brush,carton box.
Welding Thickness:
Model Welding Thickness
WSE-200 0.3-6mm
WSE-250 0.3-8mm
WSE-315 0.3-10mm
Main Technical Parameters
Item Unit WSE-200 WSE-250 WSE-315
Input Power Voltage V Single-phase 220V±10% Three-phase 380V±10% Three-phase 380V±10%
Frequency Hz 50/60 50/60 50/60
Rated Input Current KVA 4.6 6.4 9
Output Current Adjusting Range(MMA/TIG) A 10-200 10-250 10-315
No-load Voltage V 56 56 60
Rated Duty Cycle % 60 60 60
Current Down-slope Time S 0-5 0-5 0-5
Cleaning Width Adjustment % 20-80 20-80 20-80
Arc-start Mode   High Frequency
Speed Of Welding Wire COSФ 0.93 0.93 0.93
Protective Grade Of Housing   IP21S IP21S IP21S
Overal Dimension mm 590x345x485 590x345x485 590x345x485
Weight kg 23 32 38

Product Directory: WS/TIG SERIES
Tages: Inverter AC/DC TIG Welding Machine | AC/DC TIG Welding Machine, TIG Welding Machine
